BackdoorCTF'24 Writeup

Reversing/ GoBlind

Description:

This binary hides its secrets deep within. Can you untangle the layers and reveal the secret?

File : file

Writeup

This challenge was written in GoLang.
Executing this binary (without debugger), requires a password to reveal some super secret as it says.
Giving some random input ( less than 16 chars) says: Invalid Length.
Open the binary in the debugger and there we see a lot of main_* functions.
Start analysing from the main_main and first see the valid length of the input is 16
After length check, we can see the input[11] after some operations is being passed to sync__ptr_WaitGroup_Add().
Let’s reverse the operations being performed on input[11]
res= ((ord(input[11]) >> 2)%10)+2
this res value is being passed to the function sync__ptr_WaitGroup_Add(), it basically keeps the track of how many go_routines are active or need to be completed.
so, res should be equal to no. of go_routines are need to be executed.
to determine the number of executing goroutines, observe calls to runtime_newproc() and track the respective wrapper functions whose pointers are being passed.
In the wrapper functions, functions which is going to be executed within that goroutine.
To clear the check let’s find the possible chars for input[11]
Possible chars - '0' '1' '2' '3' 'X' 'Y' 'Z' '[' -> these 8 possibilities
Let’s look into the first go routine:
PxIuE72uAaCXX3HmXchd this function checks the system year and month.
Year should be 2004 and hash of the month name should be equal to 0xad018838
let’s look at the hash function t5gftiAC:

      func t5gftiAC(input string) uint64 {
         var hash uint64
         for _, c := range input {
            hash = (hash*0x1003F + uint64(c)) & 0xffffffff
         }
         return hash
      }

Month name found is July.
Now, since July is the 7th month, so key[7]='N' key[9]='$' key[10]='G'
In this function itself, there is another function CWlj47zuCalSy1YWM that returns bool value.
This seems to be another check. From here, we can see 3 chars of input involved.
input[5]==’G’ is directly observed.
let’s look for 13th and 14th character.
there’s another function called nOsylsKWBryE2UkXS, in which we can see runtime.Callers()-> that calculates the stack depth.
result =((input[13] ^ input[14])>>1)%14
Understand how runtime.Callers work, get the value equal to result.
1. runtime.Callers()
2. nOsylsKWBryE2UkXS()
3. CWlj47zuCalSy1YWM()
4. PxIuE72uAaCXX3HmXchd()
5. .go_exit()
The value here will be 5
Again there can be few possibilities, but to pass the check we can proceed further with any possible combination.
second goroutine involves checking chars of file name with chars of input.
exeName[8]==input[8] && exeName[5]==input[12] => key[8]='e' and key[12]='.'
3rd goroutine involves the no. of files in the directory in which chall.exe is present and being executed.
No. of files in the directory should be 5 and thus key[6]=='o'
In 4th goroutine, first 5 chars of the key are passed to the function HrjZ1eDoZCypd2kqH and its result is compared to NGZI1mz.
upon taking look at this function, it seems to be some kind of custom base64.
its encoding goes like this:-
1. it converts each char to 8-bit representation
2. Xor each 8-bit chunk with 0xAA
3. padding to 6-bit chunks
4. bits are reversed in each 6-bit chunk.
5. order of 6-bit chunks is reversed.
6. then mapping each 6-bit chunk to the character in the 64 length buffers (like base64).
Decoding it, we can get g0n3! -> these are first five characters of the key.
The results from these goroutines are collected via channels. If all are true, it proceeds; otherwise, it signs out of Windows.
Till now we have the key: g0n3!GoNe$GX.XXX where X are still unknown or unconfirmed.
If all results collected are true then another function R7iQNypRBtbrpyaNq1z is encountered. It looks to have some encrypted buffer. This may be the decryption routine. Let’s dive into it and see what does it unfold?
In function OnkQsAFZuhclKr2sBDT encrypted buffer is being passed and this decryption routine looks like rc6. But, I changed the hardcoded constants used in the standard algo. pw=0xB7E12163 qw= 0x9E3778D9 keeping rest same.
There is no need to reverse this function, it will decrypt the buffer with the right key.
For right key, we still the need rest 4 characters.
Since, all goroutines checks are passed [setting the required system time and year, keeping the required no of files in the same directory], data.txt file will be created, but it won’t be readable since we don’t have right key yet.
There is a function that should be reversed in depth is Z2JEqRKSdxHoRaSCjUshuqZUVD.
This function loads some buffer and then goes through some routine (that should be some sort of decoding routine) and we can see very useful stuff here like: kernel32.dll VirtualAlloc CreateThread this is enough for us to conclude that it must be involving shellcode.
3 chars from the input, input[5] input[13] input[15] are involved in the shellcode.
that decryption routine invoves first 2 chars of the key. g and 0.


        for i in range(len(sc)):
            sc[i]= sc[i]-2
            sc[i]= sc[i]^ord('g')
            sc[i]= sc[i]-1
            sc[i]= sc[i]^ord('0')

we already know input[5]=G, we need to find two chars such that our shellcode is fixed.
Find the index where these chars are involved in shellcode.
For key[15]-> 68 42 65 65 70 push 0x70656542 is the correct instruction. Here 0x68 is corresponding to input[15]
For key[13]-> 8b 40 78 mov eax,DWORD PTR [rax+0x78] Here 0x78 is corresponding to key[13].

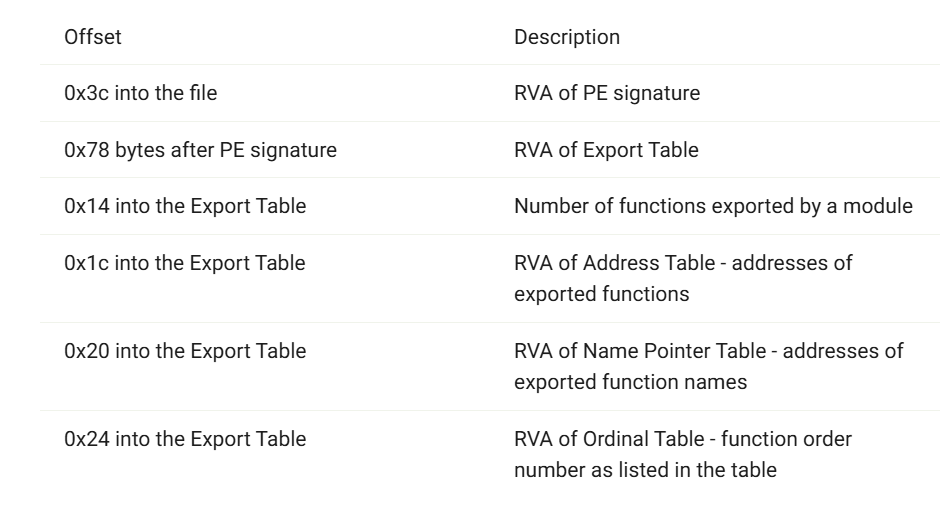

Looking at the shellcode carefully, we can find that there is peb_traversal is involved and it finds function with it. Referring to peb_traversal, we can fix key[13].
For key[15], we can see before this instruction, stack is being set up and 0x70656542 -> peeB :- Beep It is pushing this string on the stack. Before this instruction there is xor rsi rsi; push rsi that suggests it is pushing a null-byte to the stack, followed by this peeB -> Beep\x00
Resources that can be referred to:
1. https://www.ired.team/offensive-security/code-injection-process-injection/finding-kernel32-base-and-function-addresses-in-shellcode
2. https://defuse.ca/online-x86-assembler.htm#disassembly
3. Capstone

            i=0x78
            i= i^ord('0')
            i= i+1
            i= i^ord('g')
            i= i+2
            print(chr(i)) -> It gives '0'


            i=0x68
            i= i^ord('0')
            i= i+1
            i= i^ord('g')
            i= i+2
            print(chr(i)) -> It gives '@'

Our key is now:- g0n3!GoNe$GX.0X@


    str="ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/!@#$%^&*."
       for i in str:
          if 5==((48 ^ord(i))>>1)%14:
             print(i)

this is possible options for key[14]:= [J K n o r s]

With some permutations: g0n3!GoNe$G0.0n@ [Correct key]

Now with the correct key and other challenge requirements, we can get our data.txt which contains:

  Good Job, Mate! Thank you decrypting this file-- means a lot to me.
  Your secret is here: "ZmxhZ3tnMF9yMHV0MW4zc180cjNfYzAwbCEkIX0="
  Enjoy, happy reversing!

A Beep sound is heard at the end, and binary exits.
Flag is: flag{g0_r0ut1n3s_4r3_c00l!$!}
